CRYSTASEAL

CRYSTASEAL Integral Crystalline Waterproofing Admixture


CRYSTASEAL is a premium, high-performance integral crystalline admixture designed to transform standard concrete into a permanently waterproof, self-healing matrix .

Formulated as an easy-to-use powder, it penetrates the capillary pore structures of concrete to block water ingress permanently from both above and below-grade applications.


Key Features & Structural Benefits :

Permanent Integration: Becomes a non-soluble, permanent part of the internal concrete matrix .

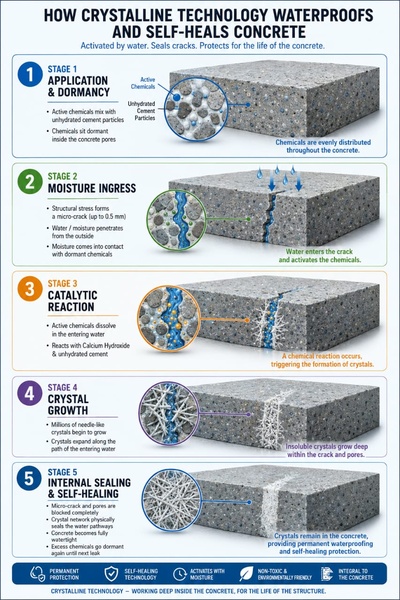

Active Self-Healing: Automatically reacts with moisture to seal structural micro-cracks and hairline cracks up to 0.5 mm .
Corrosion-Safe: Contains zero added chlorides or corrosive chemicals .
Uncompromised Project Timelines: Has a negligible effect on overall concrete working time under standard conditions .
Enhanced Chemical Shielding: Drastically improves the concrete substrate's resistance to chemical attacks and chloride penetration .

Primary Applications :
CRYSTASEAL is engineered for severe environmental exposures and critical structural waterproofing, including :

* Infrastructure: Tunnels, subways, manholes, underground vaults, and parking garages .
* Water Management: Waste treatment facilities, dams, water reservoirs, and containment tanks .
* Commercial Building: Structural foundations, deep basements, and interior/exterior walls .

Verified Technical Performance Data:
All metrics below demonstrate performance improvements relative to untreated control concrete tested under strict laboratory standards :

| Test Type                   | Testing Method | Parameters & Exposure   | Performance vs. Control |

| Water Penetration    | DIN 1048            | 72 psi head pressure        | 40% Reduction         |
| Water Permeability   | CRD C48-92       | 200 psi head pressure      | >70% Reduction       |
| Capillary Absorption | ASTM C-1585    | Standard fluid ingress       | >40% Reduction       |
| Chloride Penetration| ASTM C1202     | Resistance to ion profiling | 10% Improvement  |

Dosage & Mixing Guidelines - Standard Dosage Rate:

* Recommended Ratio: Typically dosed at 1% to 2% by weight of total cementitious material .
* Note: Changes in site conditions, local cement chemistries, and mix designs can affect exact responses .

Trial batching is highly recommended.

Critical Batching Sequence & Instructions:
To ensure thorough chemical dispersion throughout the concrete batch, strict adherence to the following sequence is mandatory :

  1. Initial Introduction: Add directly to the aggregate during the initial batching sequence (ideally while aggregate enters the mixing vessel.
  2. Timing Restriction: NEVER add at the end of the batching sequence or after cementitious ingredients are introduced . Failing to follow this can cause premature concrete stiffening or extended setting characteristics.
  3. Mixing Time: Mix concrete for a minimum of 10 minutes at normal mixing speeds after all constituents are batched .

Packaging, Storage & Limitations:

* Packaging: Supplied in durable 18 kg bags .
* Shelf Life: 1 year when stored in its original, unopened packaging away from moisture.
* Air Entrainment: Mixes may require a slight increase in air entrainer dosage to maintain target air profiles.
* Setting Times: Setting times can extend depending on your specific cement chemistry; trial mixes must be conducted locally to verify performance .
* Clean-up: Clean all batching tools and placement equipment with clean water immediately before the compound hardens.

Technical Support & Distribution in South Africa:
As part of the Polymer Coatings Group Inc. commitment to structural longevity, our technical consulting team is ready to evaluate your concrete mix designs to optimize your exact dosage requirements.

* 🌐 Order Online : Explore Our Products
* 💬 Instant Engineering Support: Message us directly on WhatsApp at +27 83 722 5843
* ⚠️ Safety Compliance: Always consult the Material Safety Data Sheet (MSDS) prior to site deployment .
